Detalhes do produto:
Condições de Pagamento e Envio:
|
| Nome do produto: | estilo móvel hidráulico do equipamento de perfuração do poço de água da multi-função da profundidade | Tipo: | Equipamento de furo giratório |
|---|---|---|---|
| calibre da haste de broca: | 50mm | Aplicação: | Poço de água & furo geotérmica do ar-condinationer |
| Poder: | Motor elétrico diesel 11KW do engie 18HP | Ângulo de perfuração: | 90°~75° |
| Garantia: | 6 meses | Peso da broca (sem poder): | 610kg |
| Realçar: | equipamento de furo do poço de água de 180m,Multi equipamento de furo do poço de água da função,máquina de furo do poço de água de 180m |
||

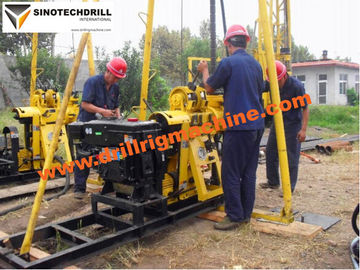

180m depth multi-function water well drilling rig hydraulic moveable style

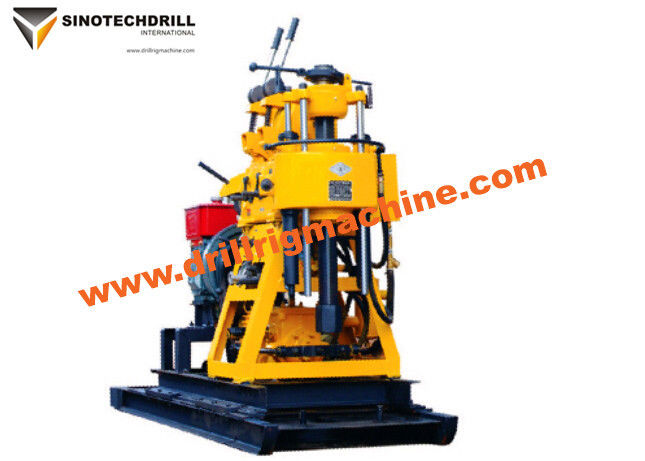

TD-180YY water well drilling rig hydraulic moveable drill
a. five gears, and the highest speed can reach 1045r/min, improving drill efficiency
b. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
e. Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
Main parameters
| Unity machine parameter | |
| Drilling depth | 30--180m |
| Drill rod caliber | 50 42mm |
| End hole caliber | 75 46mm |
| Max. open hloe caliber | 220mm |
| Drilling angle | 90°~75° |
| Drill weight (No include power) | 610kg |
| Unity machine dimensions | 2.1×0.9×1.3m |
| Spindle | |
| spindle speed | 130, 300, 480, 730, 830, 1045r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 1600kg |
| Single line lifting speed | 1.06, 0.67, 0.32m/s |
| Wirerope caliber | 13mm |
| Wirerope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug folldgate belt width | 50mm |
| Distance between drill and hole | 230mm |
| Mud pump | |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Power | |
| Diesle engine | S1105 18HP |
| Electric motor | Y160M—4 15KW |
Applications
TD-180YY drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, civil wells and earth temperature central air-conditioner,etc
